Single Cut Drilling Bucket with Cleaning Edge
For Bauer Rotary Drilling Rig
Contact us:
TEL: 0086-0731-84078482
Email: cecilia@hm-machinery.com
Quick Details
·
Place of Origin: Hunan,
China (Mainland)
·
Brand Name: HM
·
Model Number: HMCB/SC
·
Material: Q345B
45# alloy steel Hardox
·
Color: Requirement
·
Model: HMCB/SC/Dia800
·
Advantage: Europe
standard high quality
·
Application: -
Cleaning the bottom of the bore hole
·
Condition: 100%new
·
Kelly Box Type: Bauer
Sany Soilmec IMT...
·
Machine type: Rotary
Drilling Rig
·
Size: 520mm-2500mm
·
Product name: Single
Cut Drilling Bucket with Cleaning Edge
Packaging &
Delivery
Packaging Details:
|
as per customer
requirement
|
Delivery Detail:
|
Shipped in 7 days
after payment
|
Product
Description
Quality is our Bank
Single
Cut Drilling Bucket with Cleaning Edge for Bauer Rotary Drilling Rig and Rig
brand like Sany, Xcmg, Soilmec, Mait, IMT...
Drilling Bucket with Cleaning Edge
|
|||
Size
|
Single Cut
|
Double Cut
|
|
520mm-2500mm
|
1000mm-2500mm
|
Remark
|
|
Application
|
-
Cleaning the bottom of the bore hole
|
||
Features
|
-Kelly
Box size
130;150;200mm; - Pilot bit RP4 with round shank chisels progressive cutting dege with round shank chisels - Wear protection: hard facing(standard or wear strips(optional) |
||
Why
choose us
Step
1 Our Technical Advantage
Step
2 Rotary Drilling Rig Drilling Tools Application Cases
Step 3 How to choose Drilling Bucket/Drilling Auger/Core Barrel
Kelly
Box Standards
- Kelly Box
should be welded fabricated with the plate thickness of 30mm.
- The Kelly
box size shall be 200X200 Sqmm /150X150 Sq mm/130X130 Sq mm or suitable to
Piling Rig.
- The Kelly
box shall be of full length size for proper alignment of holes and
optimum power transmission capacity. The total inside
clearance for Kelly box square shall be +5mm. The Holes of Kelly box shall be welded
collar.
- The Kelly
box will be manufactured with signed copy of drawing from customer side.
Cutting
Edge Standards
The cutting edges/ diameter shall be 30mm--40 mm less than the Pile/Casing Diameter(Inner Dia). This shall provide a 30mm--40 mm total clearance i.e. 15mm--20 mm on each side. This shall be applicable to each Piling Tools manufactured.
The cutting edges/ diameter shall be 30mm--40 mm less than the Pile/Casing Diameter(Inner Dia). This shall provide a 30mm--40 mm total clearance i.e. 15mm--20 mm on each side. This shall be applicable to each Piling Tools manufactured.
Please refer the sample table given below
Normal Size of Tool
(Casing Inner Diameter)
|
Outer Dia of Shell Diameter
(Auger flight Diameter)
|
Cutting Edge Diameter
(Teeth to Teeth Distance)
|
|
900
mm
|
820
mm-840 mm
|
860
mm-870 mm
|
|
1200
mm
|
1120
mm-1140 mm
|
1160
mm-1170 mm
|
|
Step4 Our Drilling Bucket Series
HM Machinery
Driling Bucket are used to drill all
types of soils below
groundwater.
Our Drilling
Bucket are mainly divided into three
types:
#1 Rock Drilling Bucket
(Include
Single Cut Rock Drilling Bucket and Double Cut Rock Drilling Bucket)
#2 Clay(Dirt) Drilling
Bucket
(Include
Single Cut Clay(Dirt) Drilling Bucket and Double Cut Clay(Dirt) Drilling Bucket)
#3 Cleaning Bucket
(Include
Single Cut Cleaning Bucket and Double Cut Cleaning Bucket)
For
Details plz study below table refer to below pictures
HM Machinery Drilling Bucket Series
|
|||||||||
Clay (Dirt) Drilling Bucket
|
Clay (Dirt)
Drlling Bucket
With Collar Plate
|
Rock Drilling Bucket
With Collar Plate
|
Drilling Buck with Cleaning Edge
|
Centrifugal Bucket
|
|||||
Single
Cut
|
Double
Cut
|
Single
Cut
|
Double
Cut
|
Single
Cut
|
Double
Cut
|
Single
Cut
|
Double
Cut
|
Flat
Teeth;
Round
Shank Chisel Teeth
|
|
Size
(mm)
|
520-1500
|
1000-2500
|
520-1500
|
1000-2500
|
520-1500
|
1000-2500
|
520-1500
|
1000-2500
|
800-100
|
Application
|
-Soft
to stiff slit and clay,loose to medium dense sand and gravel
-
Single Cut upto coarse gravel
-
Double Cut is recommended in uncased bores and for bigger diametrs
|
-
Soft to stiff slit and clay, loose to medium dense sand and gravel ;
-
Single cut upto coarse gravel;
-
Double cut is recommended in uncased bores and for bigger diameters for
secant pile wall
|
-
Very dense sand and gravel weak rock;
-
Single cut upto coarse gravel;
-
Double cut is recommended for uncased bores or bigger diameters and for
secant pile wall
|
-
Cleaning the bottom of the bore hole
|
-
Stick Soil like clay
-
Max for upto 500kpa mud rock or sand rock
|
||||
Features
|
-
Kelly Box size
130;150;200mm
-
Fishtail Pilot and flat teeth FZ;
-
Ventilation Pipe;
-
Wear Protect: hard facing(standard) or wear strips(optional);
|
-
Kelly Box size
130;150;200mm
-
Round shank chisel pilot bit RP4, Teeth FZ and collar plate with round shank
chisels;
-
Ventilation pipe;
-
Wear protection: hard facting (standard) or wear stips(optional)
|
-
Kelly Box size
130;150;200mm;
-
Round shank chisel pilot bit RP4, cutting edge and collar plate with round
shank chisels;
-
Ventilation pipe;
-
Wear protection:hard facing(standard)or wear strips(optional)
|
-Kelly
Box size
130;150;200mm;
-
Pilot bit RP4 with round
shank
chisels progressive cutting dege with round shank chisels
-
Wear protection: hard facing(standard or wear strips(optional)
|
-
Kelly Box size
130;150;200mm;
-
Round shank chisels teeth or flat teeth FZ
-
Protection :hard facing(standard)or wear strips(optional)
|
||||

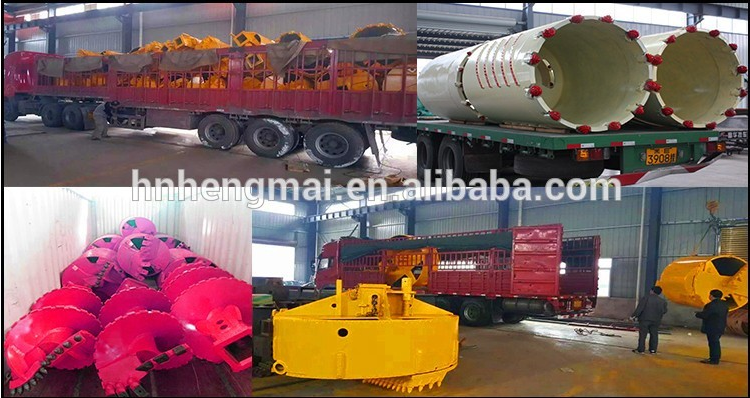

Packing
& Delivery
Payment
|
40% T/T in advance
|
60% T/T before loading
|
Delivery
Time
|
7 days after receiving down payment
|
|
Package
|
Normal
Package or as customer requirement
|
|
Our
Company
Factory and
Office
Work
Shop and Store
Fair
Show: Bauma China Exhibition-2010
FAQ
Q1.Are
you a manufacturer or trading company?
- Yes, we have two factories and we are the leading manufacturer in China. Welcome if you have plan to visit our
factory and inspect the products.
Q2.How is your Rotary Drilling Rig Drilling Tools quility?
- We manufacture Drilling Tools basic on serving our mother company which is a professional foundation construction
company since 2003, we deal with machinery and spare parts problems and improve it
- We succeed to be as Drilling Bucket/Drilling Auger/Core Barrel OEM of XCMG Co
- You can restudy above our technical advantage and analyze, We believe with above introduction you can make good
quality Drilling Bucket by yourselve as well
Q3.Do you accept sample order?
- Yes sure, please contact us for details.
Q4.How about your after-sales service?
As a manufacturer, we offer promote technology support for all problems and questions.
Besides, we accept goods return or replace for quality problem.
Q5.Where is your factory located in?
Our factory is located in Changsha city,Hunan province, China.
- Yes, we have two factories and we are the leading manufacturer in China. Welcome if you have plan to visit our
factory and inspect the products.
Q2.How is your Rotary Drilling Rig Drilling Tools quility?
- We manufacture Drilling Tools basic on serving our mother company which is a professional foundation construction
company since 2003, we deal with machinery and spare parts problems and improve it
- We succeed to be as Drilling Bucket/Drilling Auger/Core Barrel OEM of XCMG Co
- You can restudy above our technical advantage and analyze, We believe with above introduction you can make good
quality Drilling Bucket by yourselve as well
Q3.Do you accept sample order?
- Yes sure, please contact us for details.
Q4.How about your after-sales service?
As a manufacturer, we offer promote technology support for all problems and questions.
Besides, we accept goods return or replace for quality problem.
Q5.Where is your factory located in?
Our factory is located in Changsha city,Hunan province, China.
